| MODEL NO. | CWS-10062A | ||||||
|---|---|---|---|---|---|---|---|
| Type | Built-In | ||||||
| Operation Method | Pneumatic Advance | ||||||
| Support Force(kgf) at 6kgf/㎠ | 103.0 | ||||||
| Plunger Stroke (mm) | 6.5 | ||||||
| Plunger Diameter (Ø) | 10.0 | ||||||
| Plunger Spring Froce (kgf) | 0.22~0.29 | ||||||
| Operating Pressure | 4.0~6.0kgf/㎠ | ||||||
| Operating Temperature | 0 ~ 70℃ | ||||||
| Weight (kg) | 0.28 | ||||||

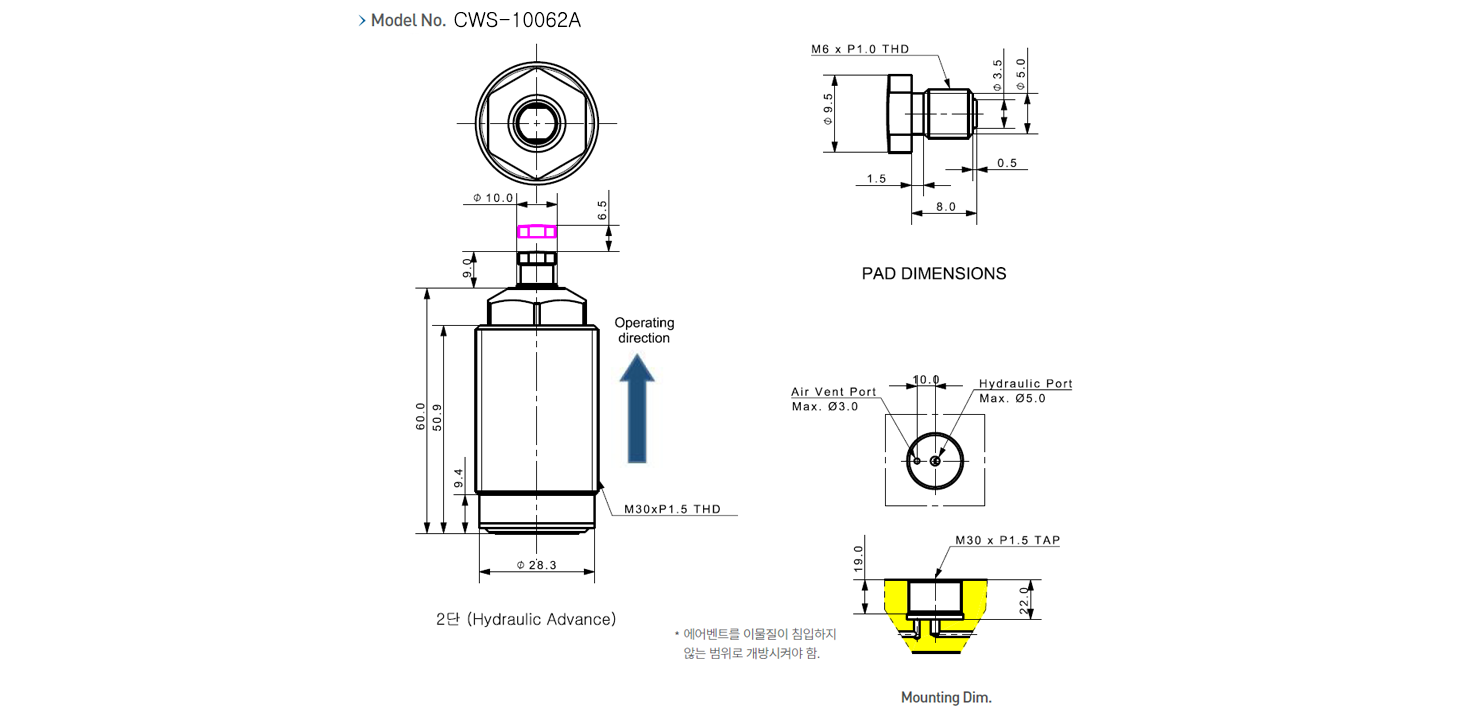

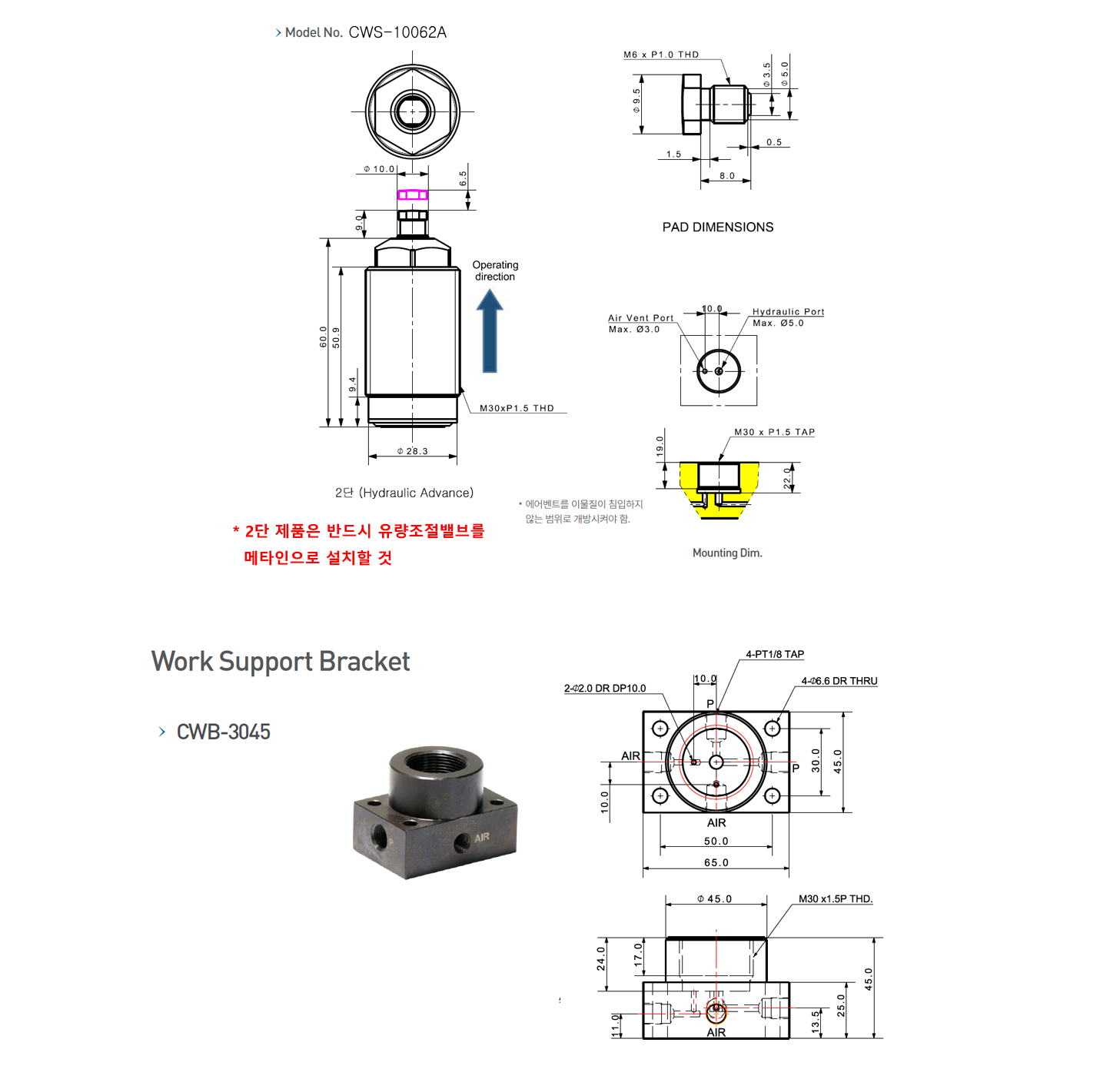

| Download Drawings | 2D | 3D | |||||
 |
 |
 |
|||||
